This Xs is built by WSDMoto out of orange county CA.

All the components that went into the build are TOP OF THE LINE! There were a lot parts that I initially made/bought for this build that I wasn’t 120% satisfied with so I replaced with the best of the best. Some of the parts and littlest details took months to locate and/or finish. Everything that is on the bike now has been tested and proven to be the best performing and most reliable components out there!

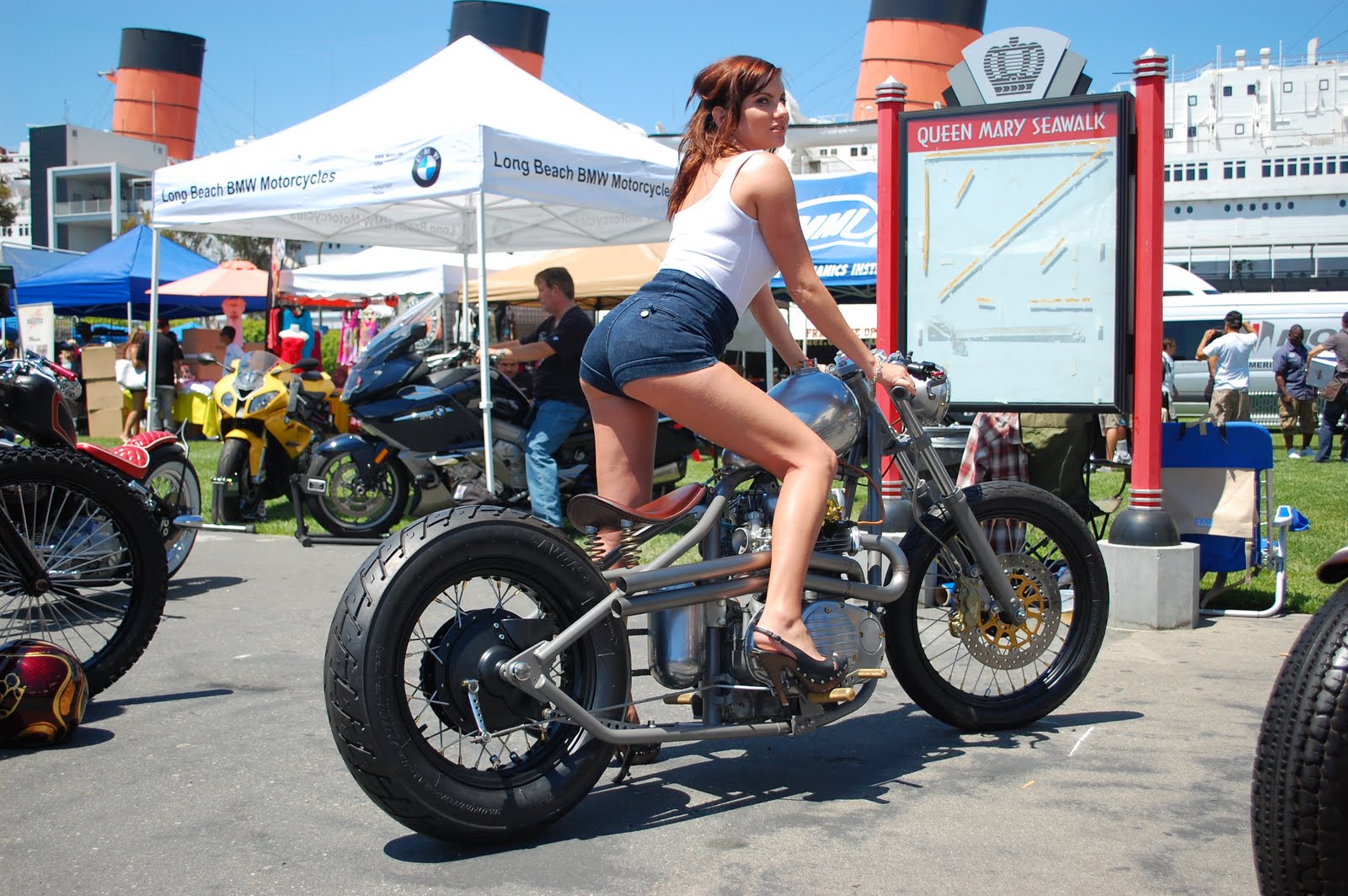

xs650-chop-DSC_3313

Click here to see this picture full-screen 😉

xs650-chop-DSC_3347

Engine
– Complete top end rebuild
– Bored & honed cylinders and valves re-seated
– New 1 over pistons & rings
– New cam chain, tensioner & guides
– New gaskets, filters, o-rings, hardware etc…

Fuel & Electrical System
– Mikuni VM34 racing carburetors
– Pamco electronic ignition
– 3-phase permanent magnet alternator charging system
– Mini “triple-i” sealed battery

xs650-chop-DSC_3350

xs650-chop-DSC_3363

Chassis
– Custom rigid hard tail frame
– One-off foot controls with knurled brass pegs
– Billet triple clamp
– Fully rebuilt damper-valved front forks
– Custom sprung seat covered by Redtail Leather
– Custom one-off brushed chrome gas tank with hand cast one-off vintage gas cap
– Custom one-off chopper headlight and brass tail-light
– All Balls tapered steering head bearings
– 520 o-ring chain and custom made sprockets

xs650-chop-DSC_3365
xs650-chop-DSC_3370
Wheels & Brakes
– Custom aluminum Akront rims
– Custom Stainless Steel spokes and Brass plated SS nipples
– All Balls wheel bearings
– Brembo front 4-piston caliper, rotor and radial master cylinder with SS brake line
– Avon AM20/AM21 tires

xs650-chop-DSC_3382

The build sheet above is actually pretty basic. There is a lot more that went into the build if you can imagine. All parts used are brand-new.

The only components that were previously used are the engine casings, engine cradle portion of frame, and wheel hubs. All of which were media blasted, re-surfaced and finished for this build. The motor is awesome and starts on the first kick!

xs650-chop-DSC_3385

Total build time is a little under 9 months. The bike is still new as it has not been on public roads but the motor/transmission/drivetrain have been tested and function perfectly.

It is for sale at $6500 with many extras on craigslist. Located in Southern California.
